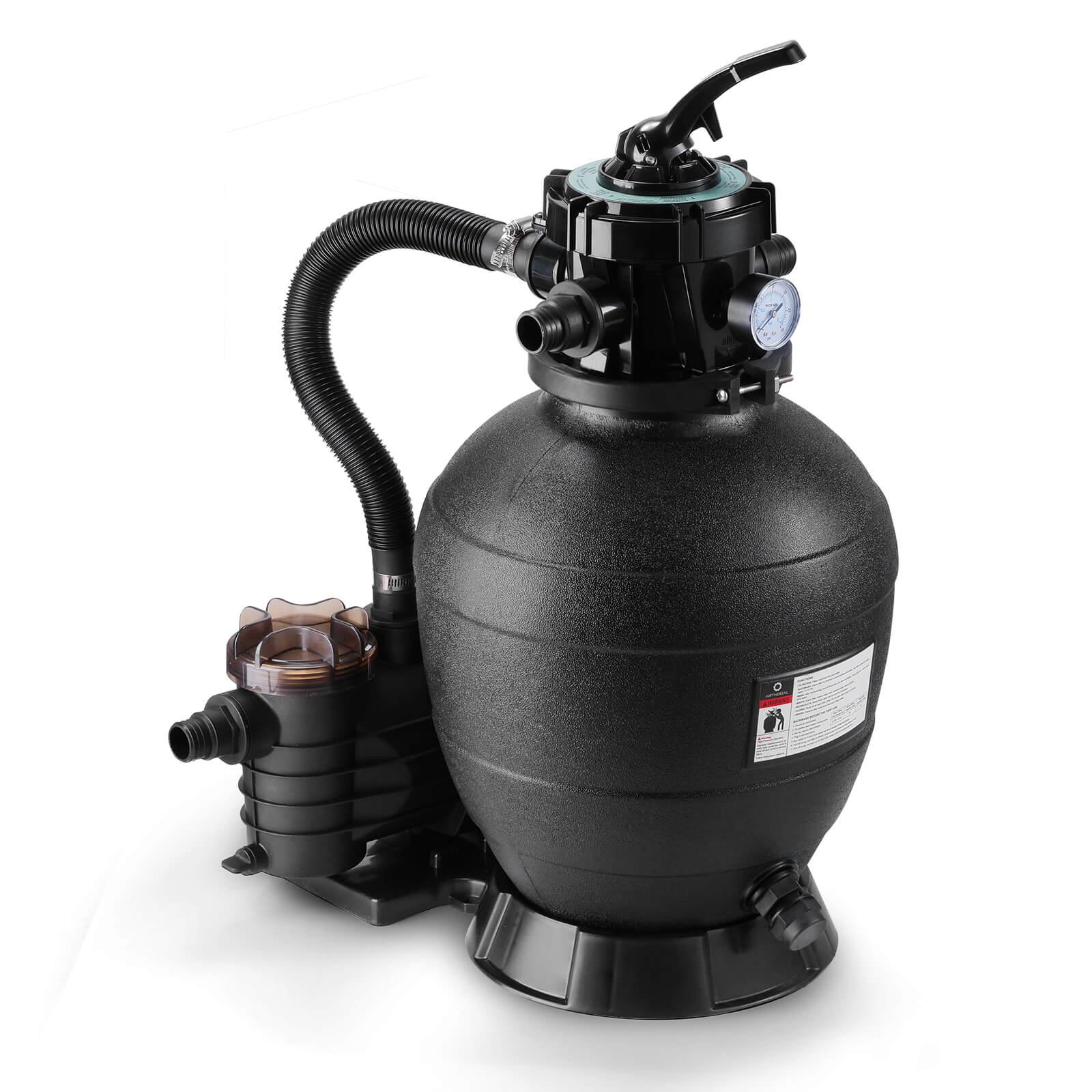

AquaMind Sand Filter Pump

AquaMind Sand Filter Pump

$179.99 USD
$179.99 USD
Now $143.99 USD
Shipping calculated at checkout.

Save 20% with code: SUMMER20

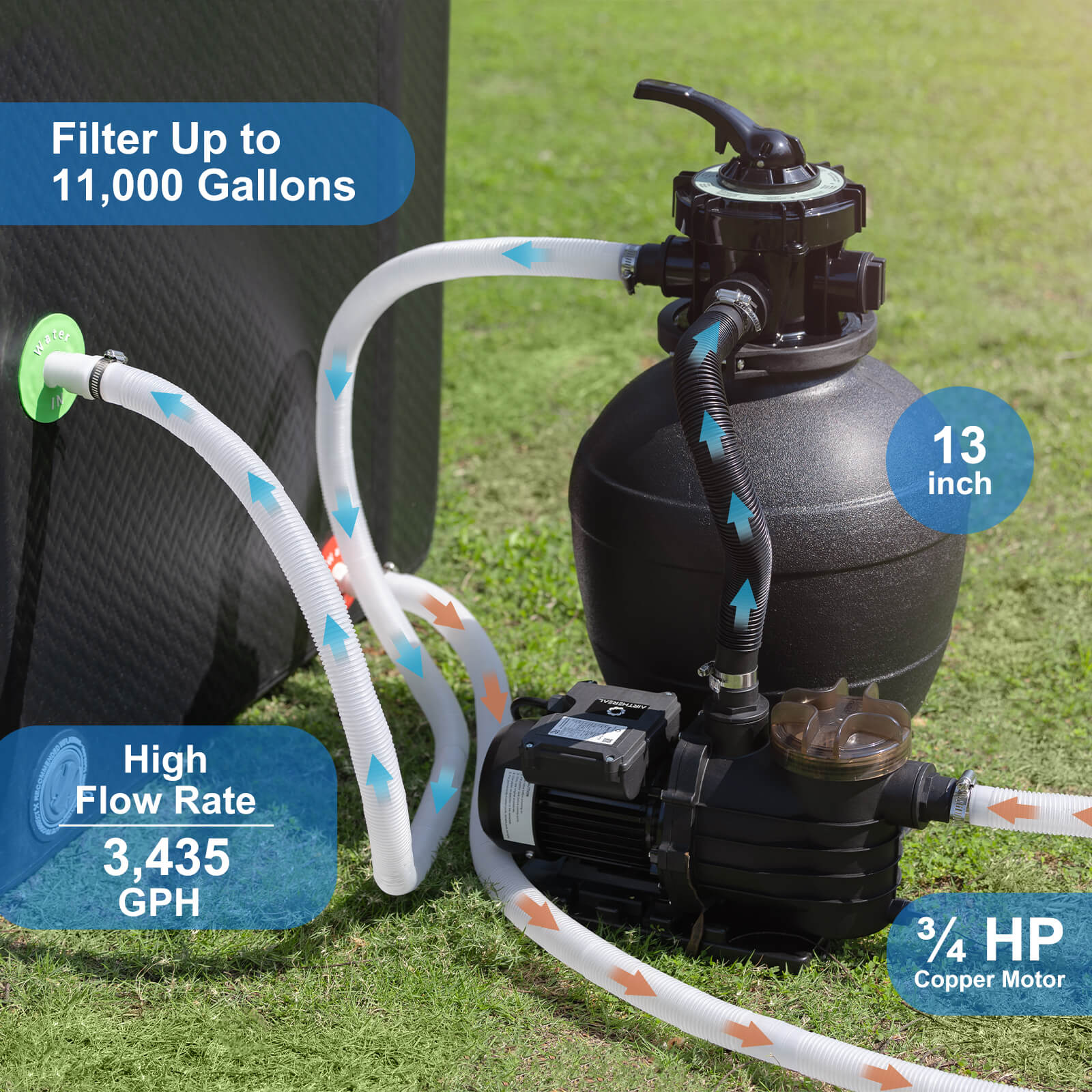

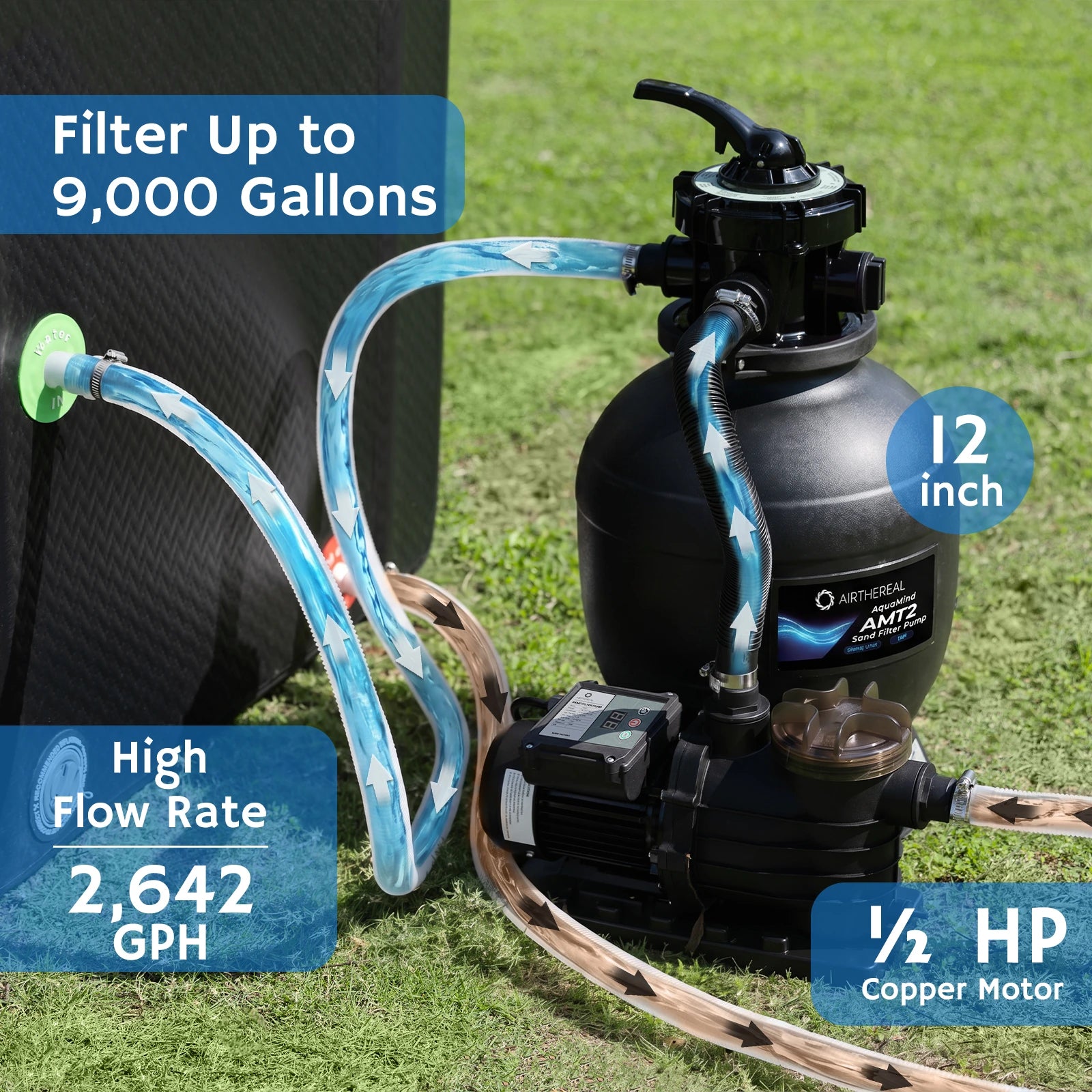

  • 3,435 GPH high-flow pump filters pools up to 10,567 gallons.

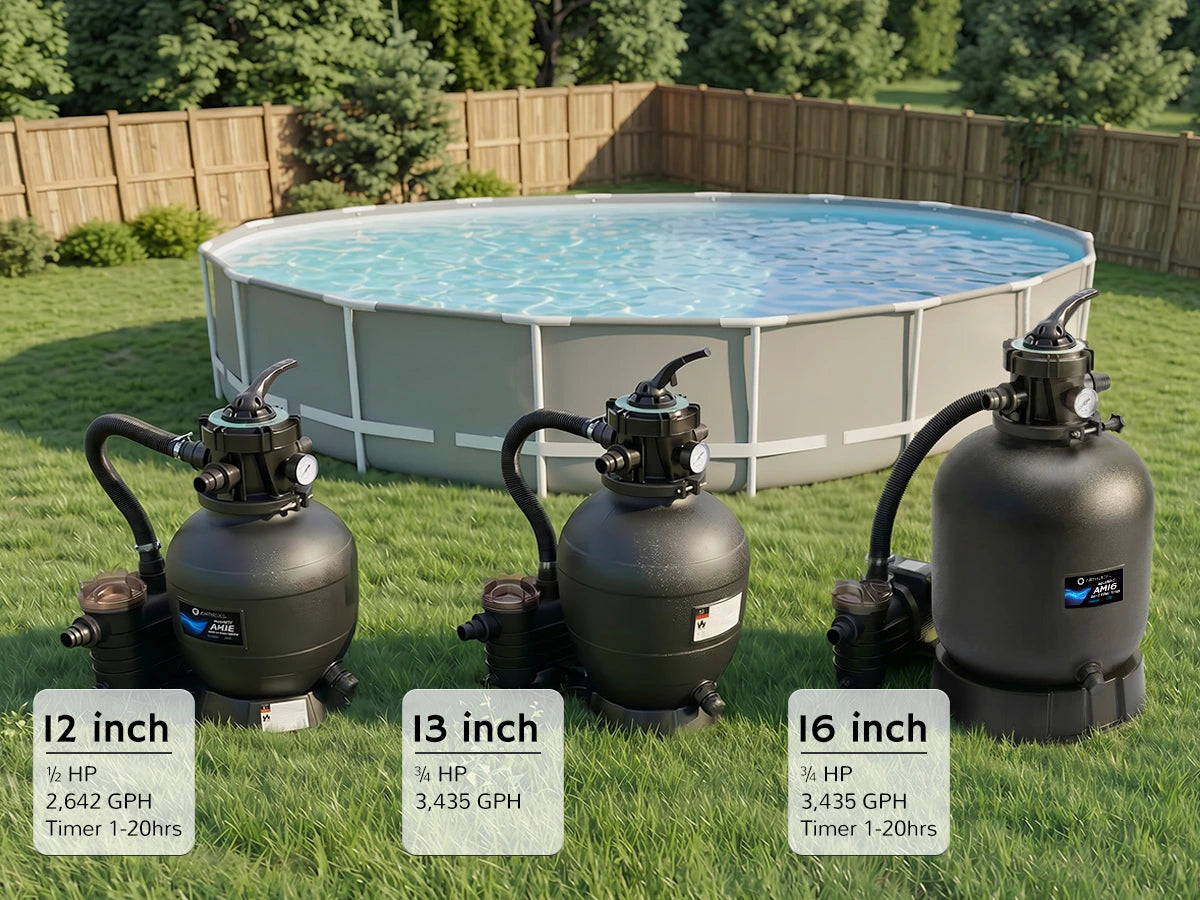

  • 3 sand tank sizes available for different needs: 12 in, 13 in and 16 in, delivering up to 3,435 GPH flow and a max head of 40 ft, ensuring fast circulation for multiple above-ground pools.

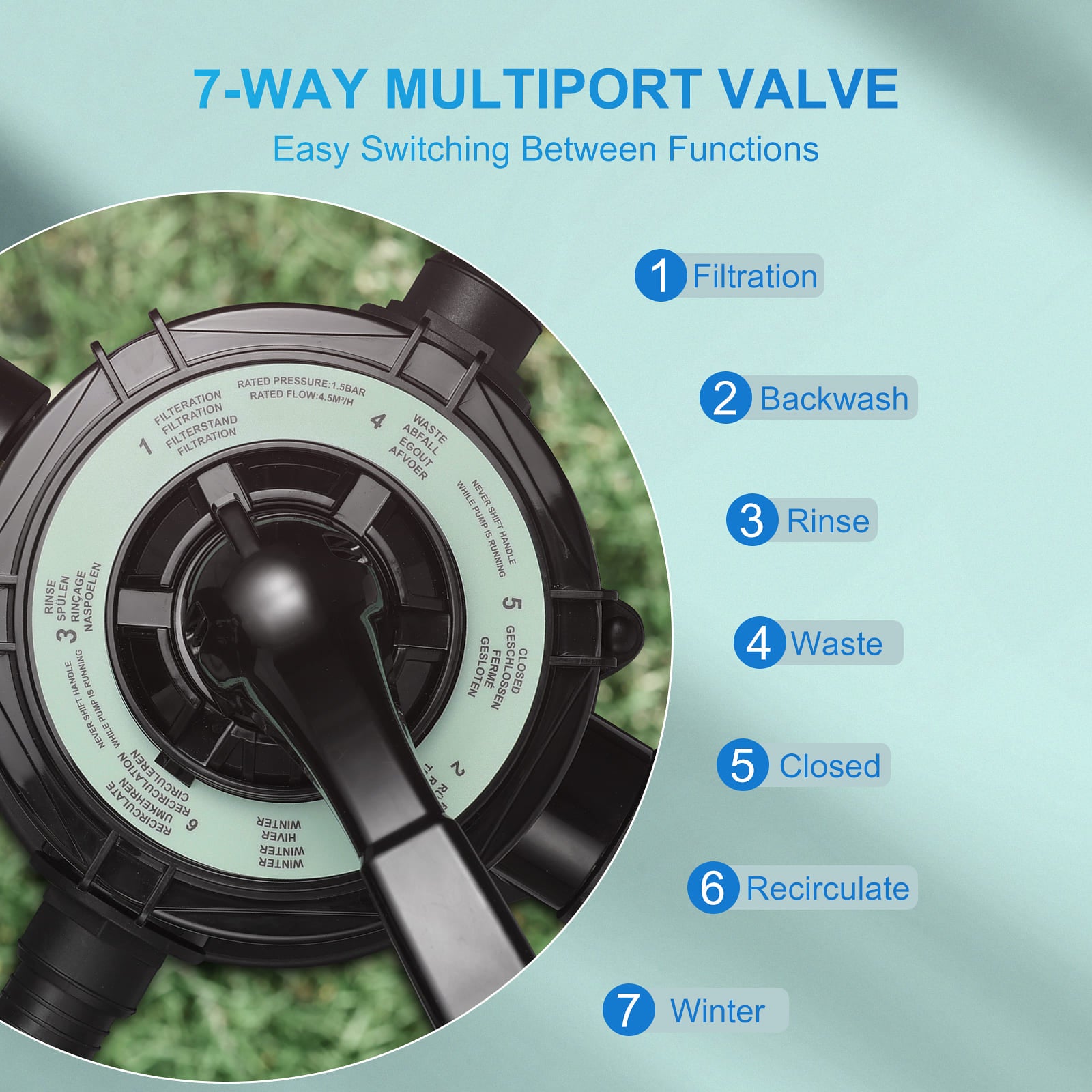

  • 7-way valve with modes including filter, rinse, backwash, waste, recirculate, winterize and close.

  • Powerful copper motor (0.54 HP – 0.745 HP) with built in overload protection for stable performance.

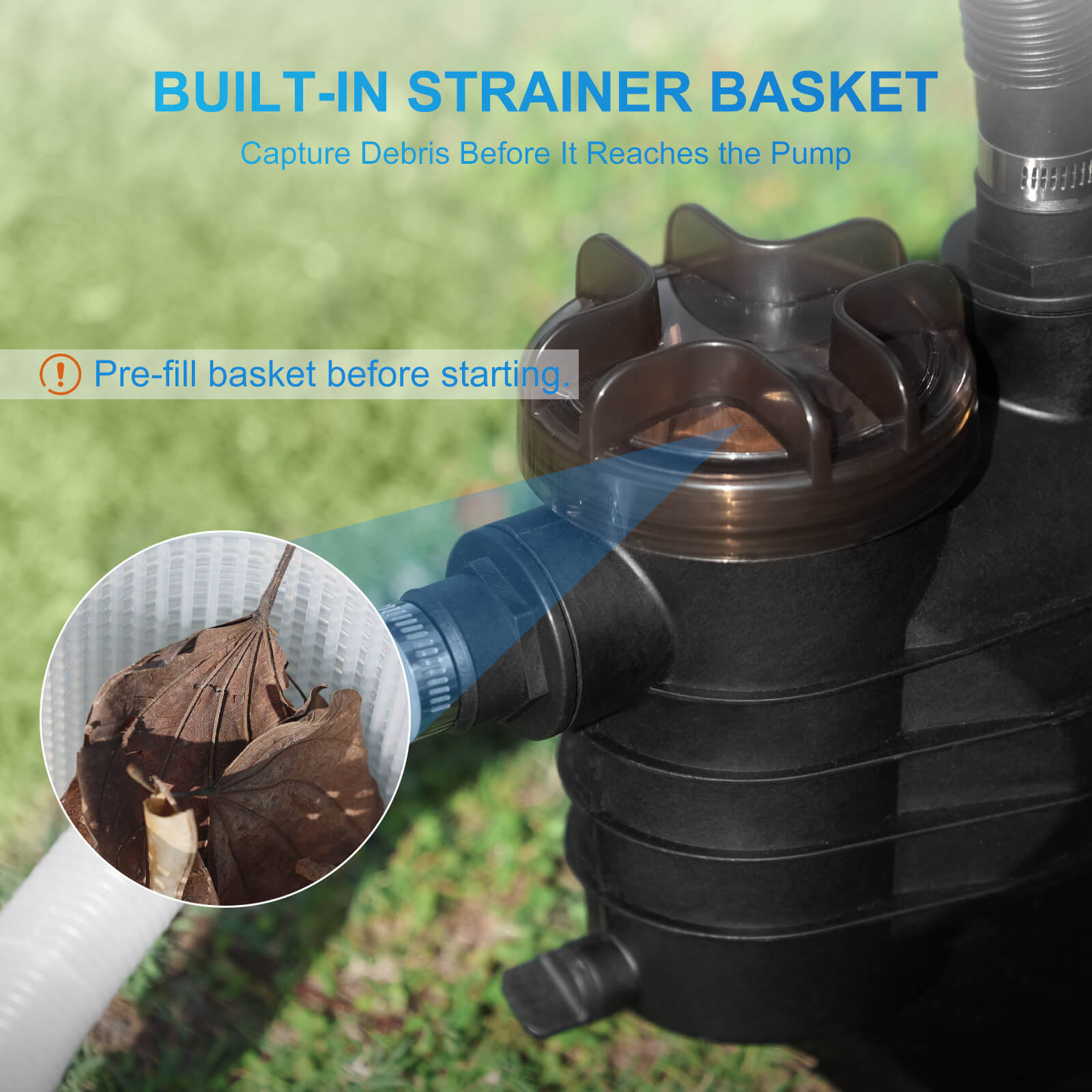

  • Pre-filter basket catches large debris with clear lid for quick maintenance.

💡 Need help choosing? View our Buying Guide.

Size

In stock
SHARE
View full details
Description
Review

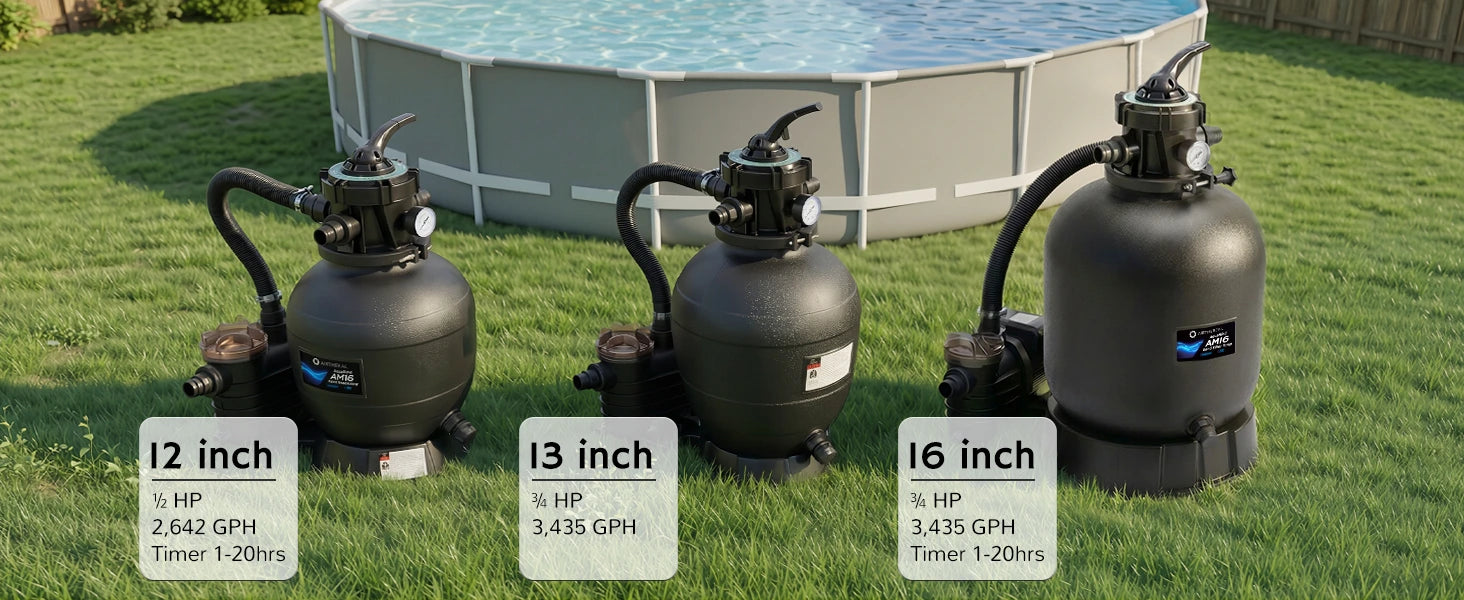

Three above-ground pool pumps of different sizes on grass with a pool in the background.

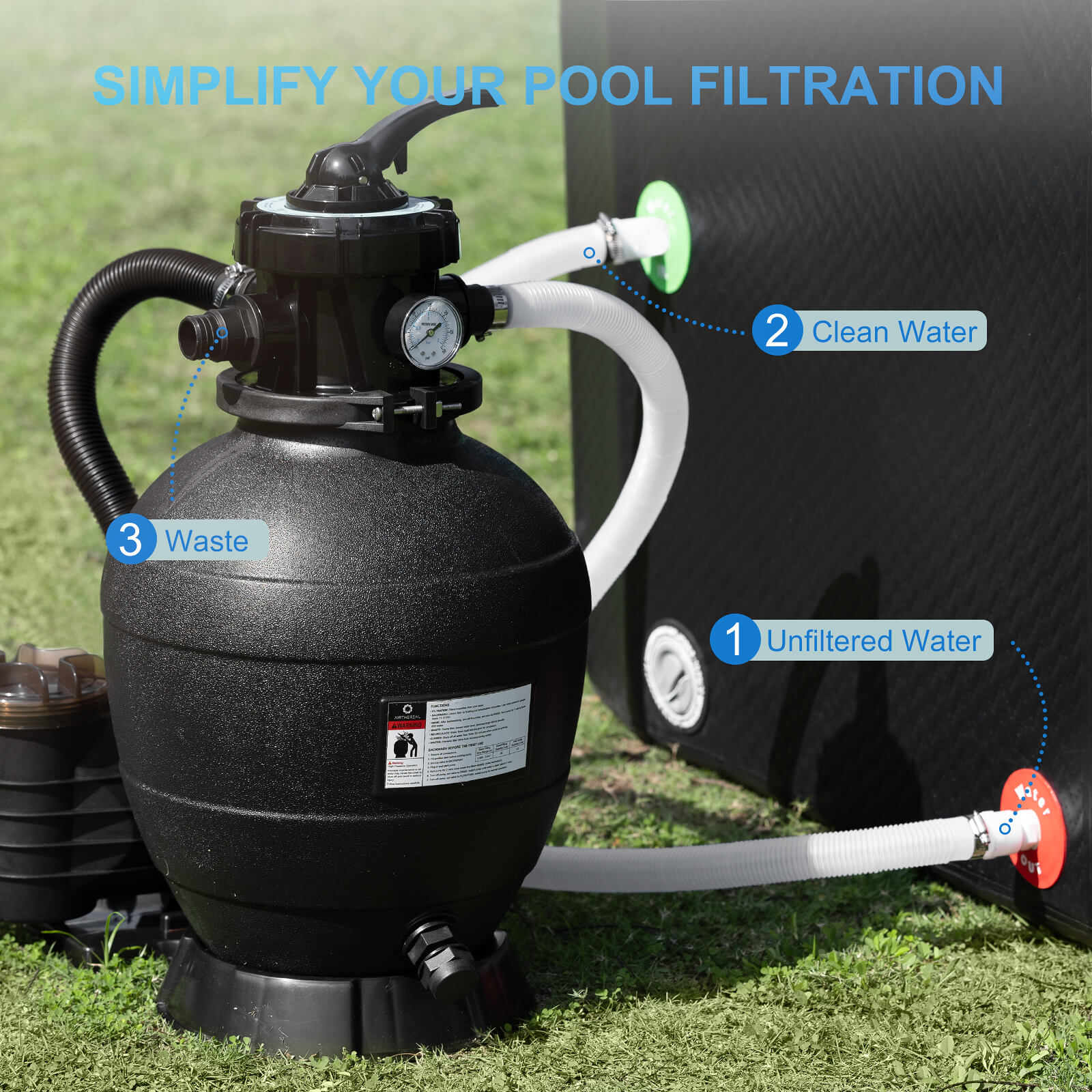

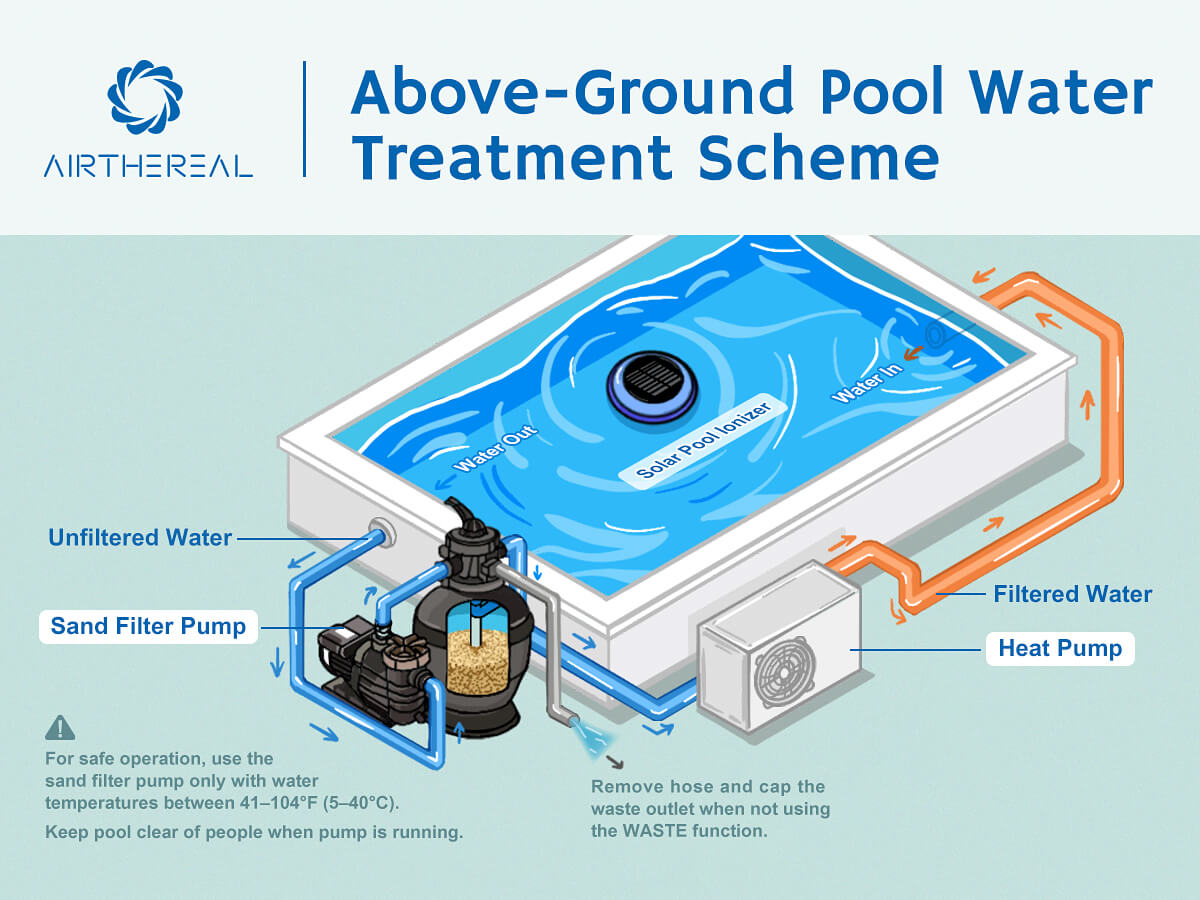

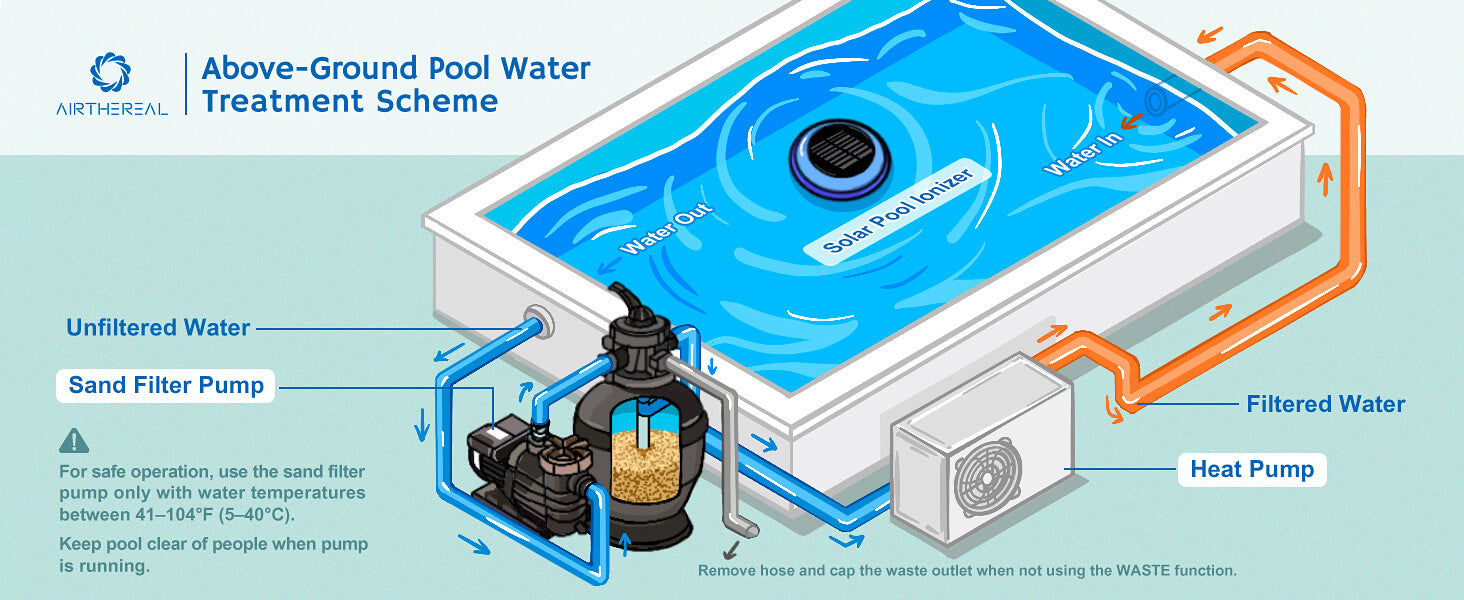

How Does a Sand Filter Pump Work?

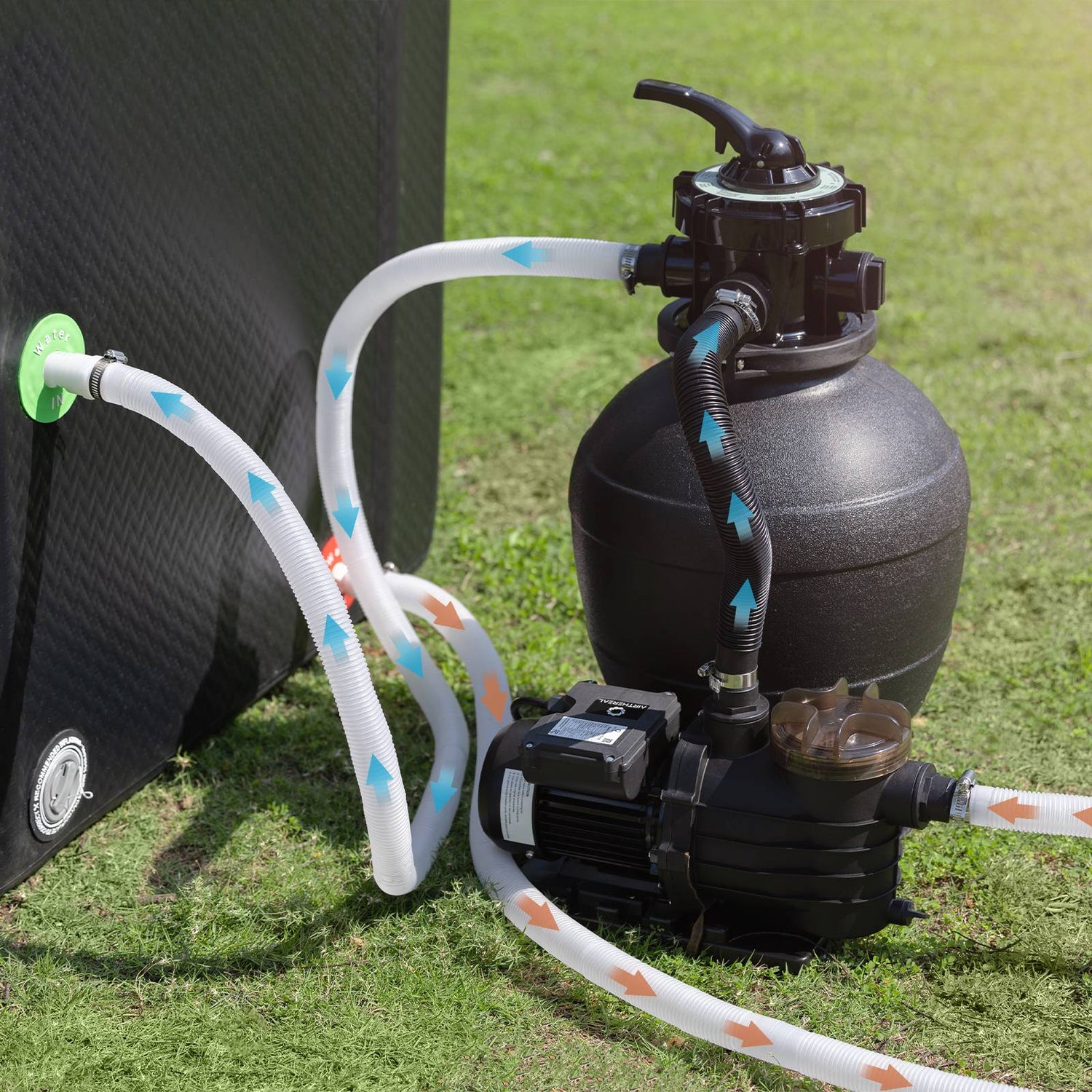

A sand filter pump keeps your pool water clean by filtering out dirt, debris, and other particles. Water from the pool is pumped into the tank, where it passes through a bed of specially graded sand. The sand traps fine particles, allowing clean water to flow back into the pool. Over time, when the sand becomes too full of debris, a simple backwash reverses the flow to flush the dirt out. It’s a low-maintenance, high-efficiency system that delivers sparkling water all season long.

Clean Pools Up to 10,567 Gallons

Enjoy crystal clear water all summer with this 12-16 inch sand filter pump. Perfect for above ground pools up to 10,567 gallons. Easy to use and built for summer fun.

In the Box

Everything you need to get started.

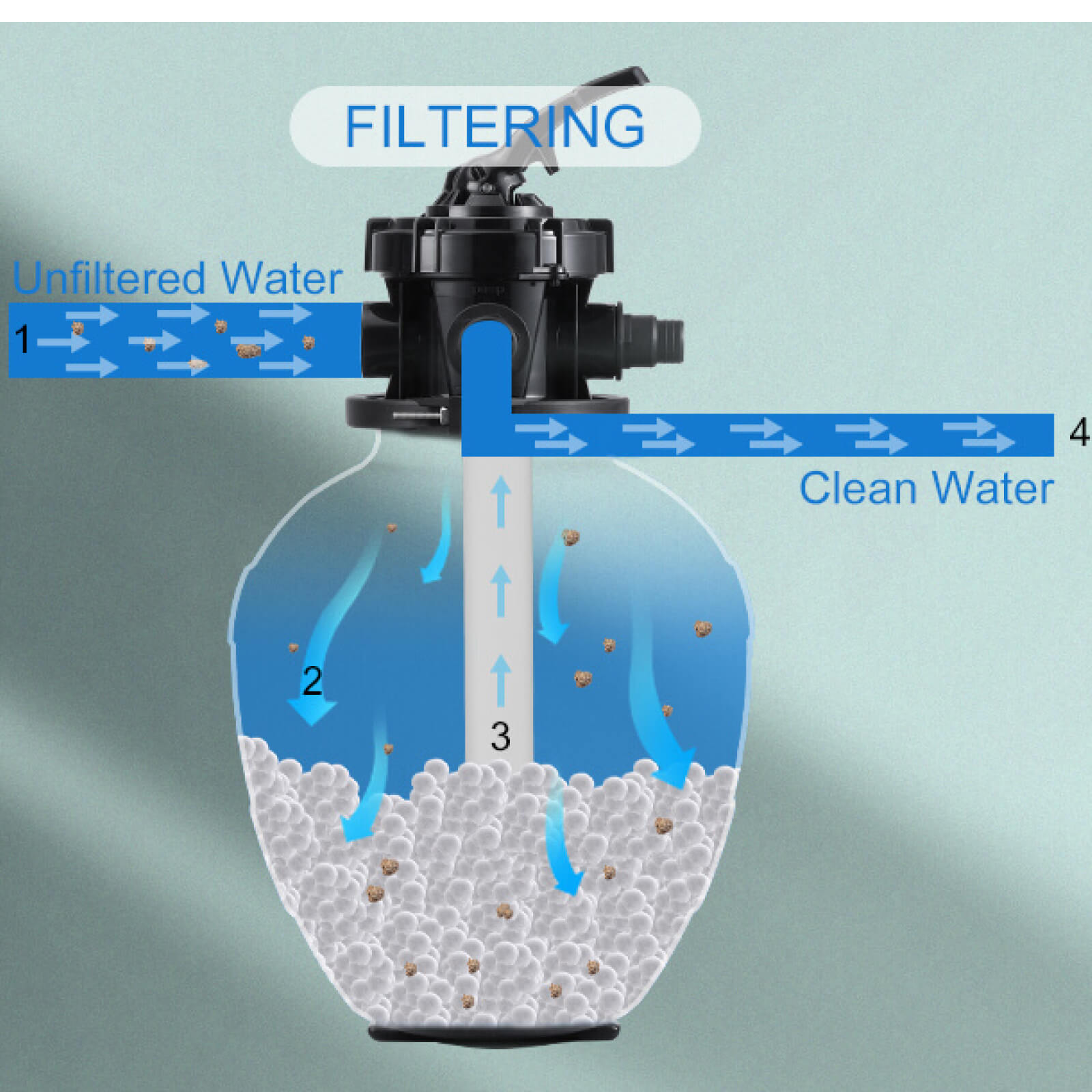

  • Filtration

    Water passes through sand or filter balls to trap debris and maintain clean, clear pool water.

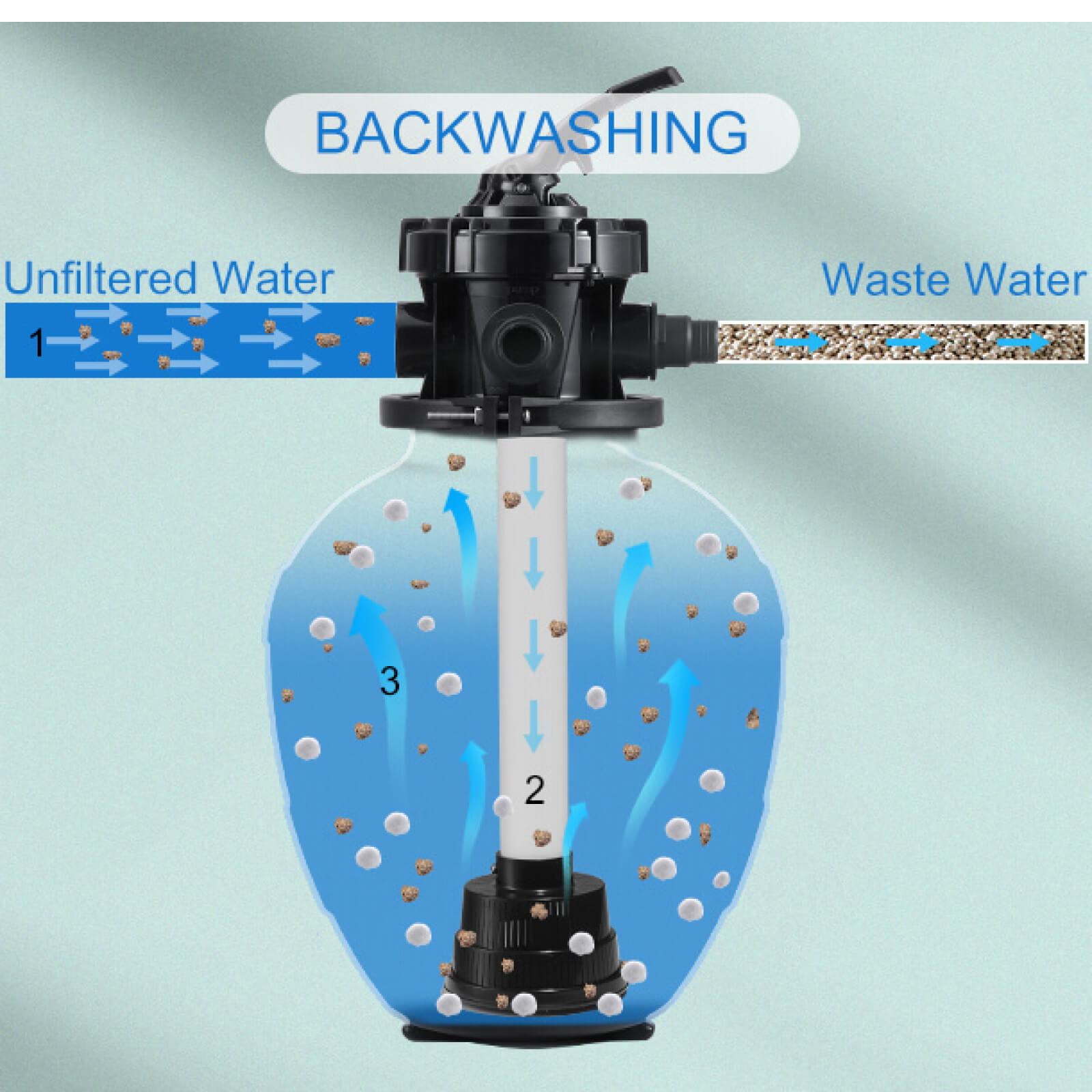

  • Backwash

    Cleans out trapped dirt by reversing water flow through the filter sand or balls.

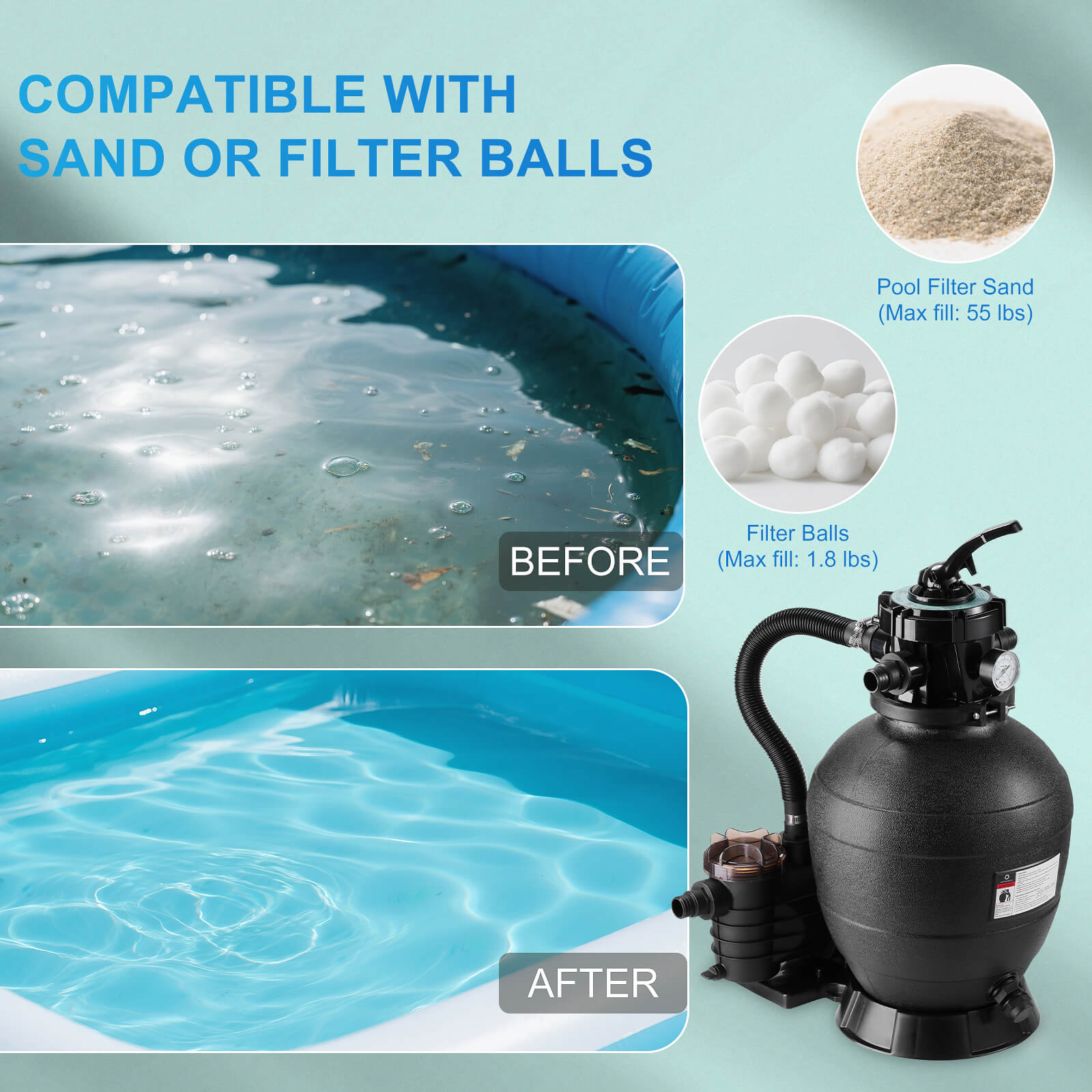

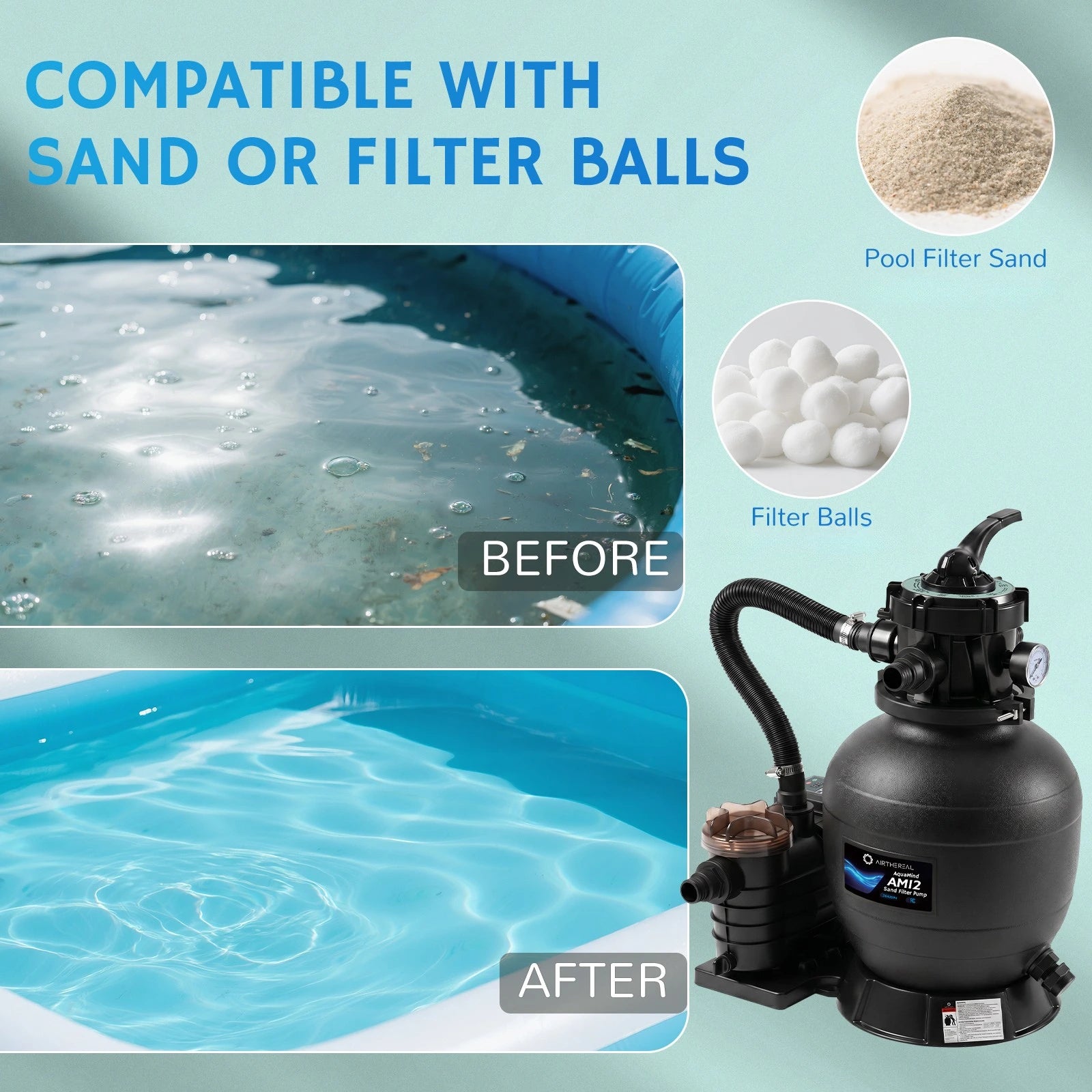

Compatible with Sand or Filter Balls

Sand and Filter Balls NOT included in this product.

In the Box

Everything you need to get started.

  • Pool Filter Sand

    Capacity: Up to 162 Ibs (0.5-1.2mm)

    Suitable for: Larger Pools or Heavy-Duty Filtration

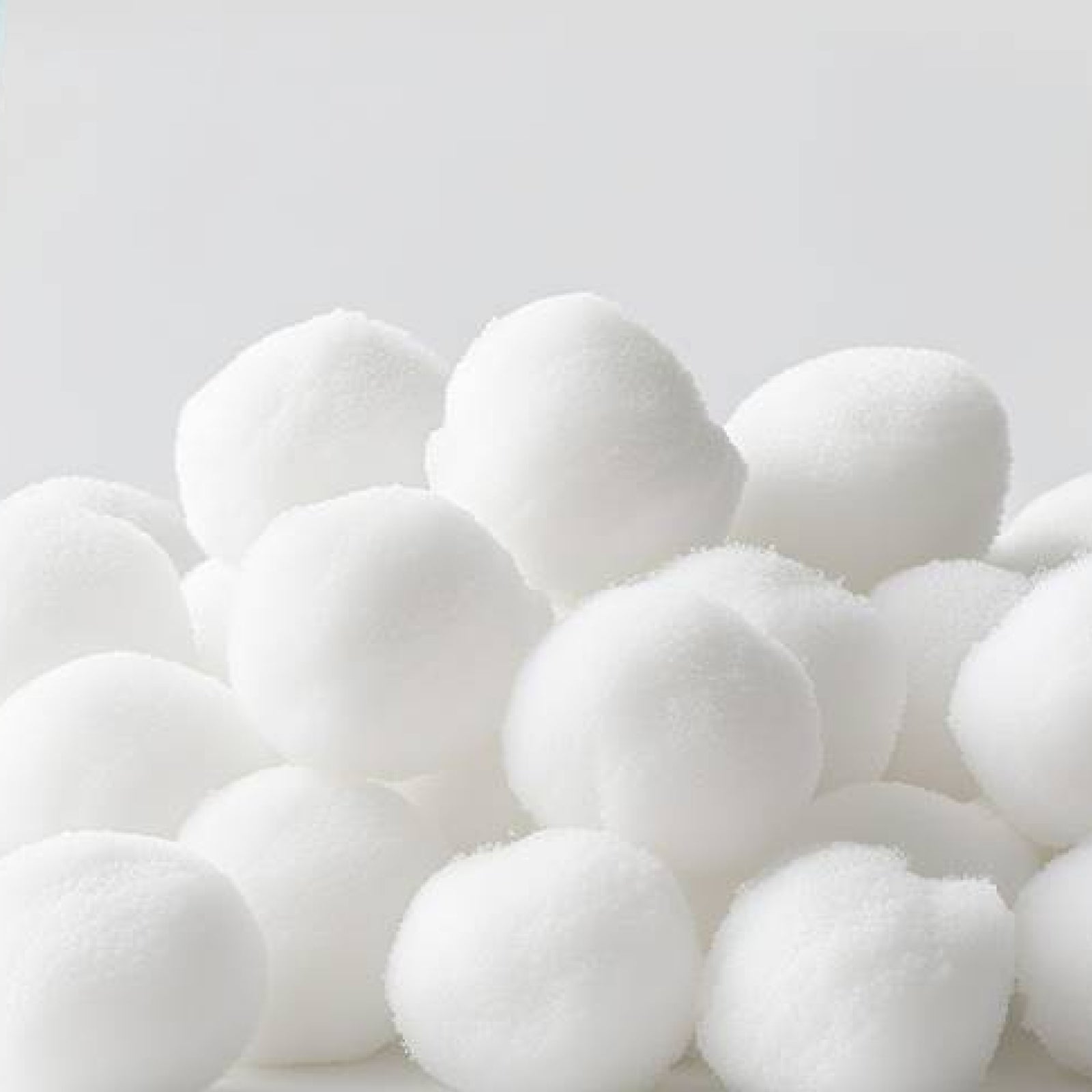

  • Filter Balls

    Capacity: Up to 16.2 Ibs

    Suitable for: Smaller Pools or Quick Cleaning

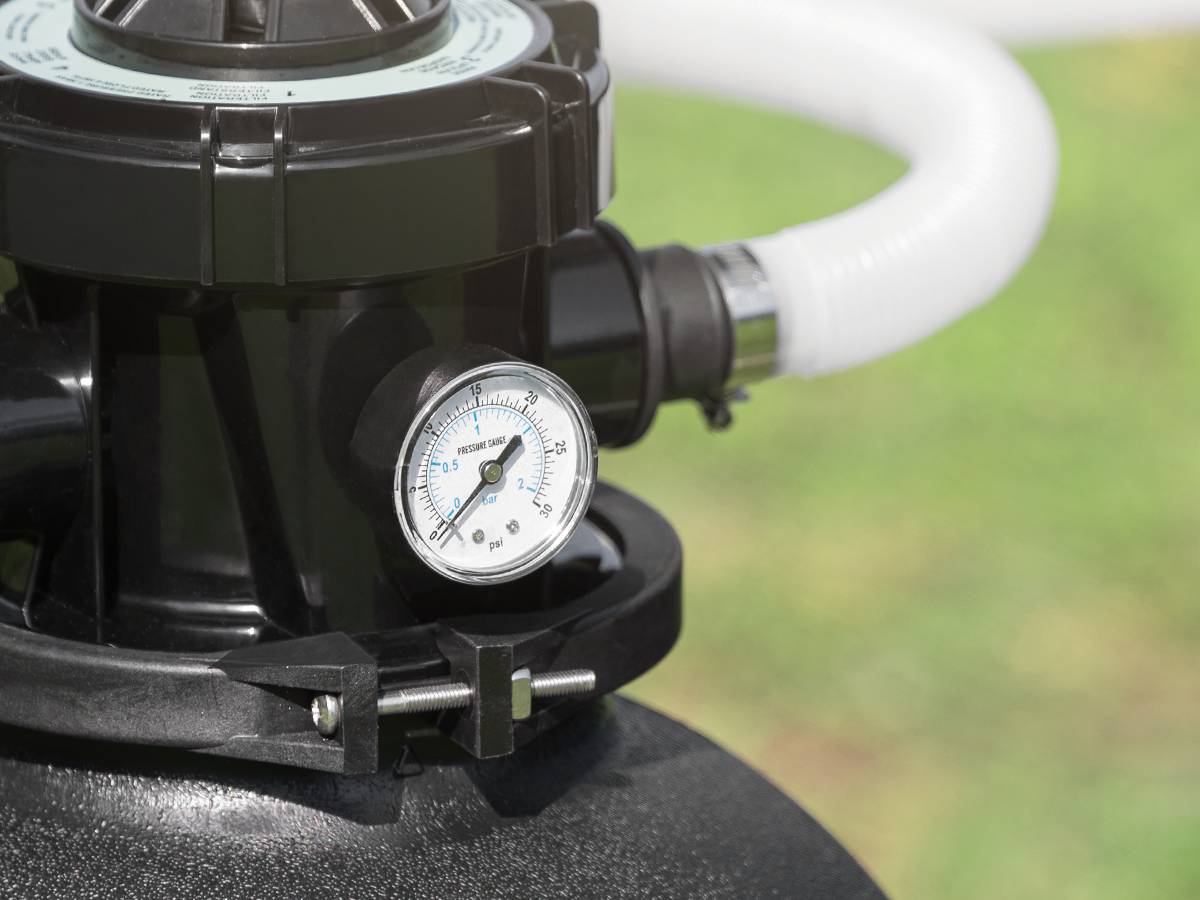

Built-in Pressure Gauge

Easily track filter status and know when it’s time to backwash.

After startup, simply note your system's clean pressure. When the gauge reads 11–12 PSI above the clean pressure, it's time to perform a quick backwash cycle to restore optimal filtration performance.

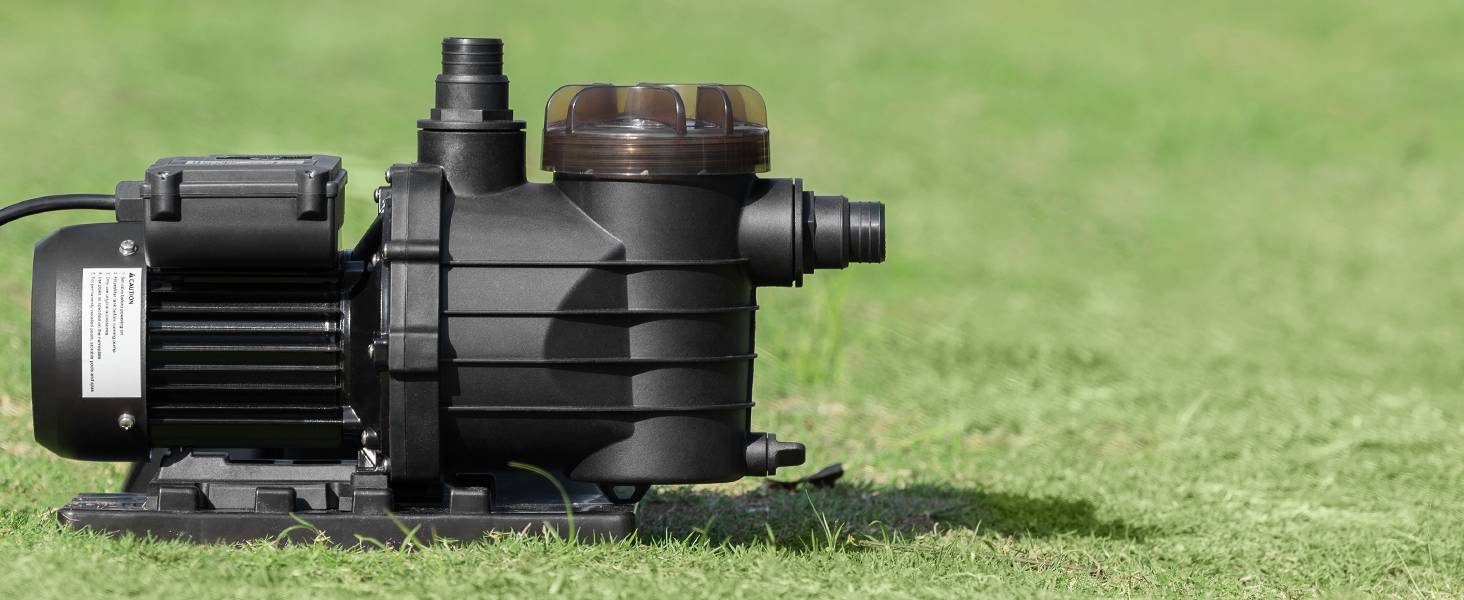

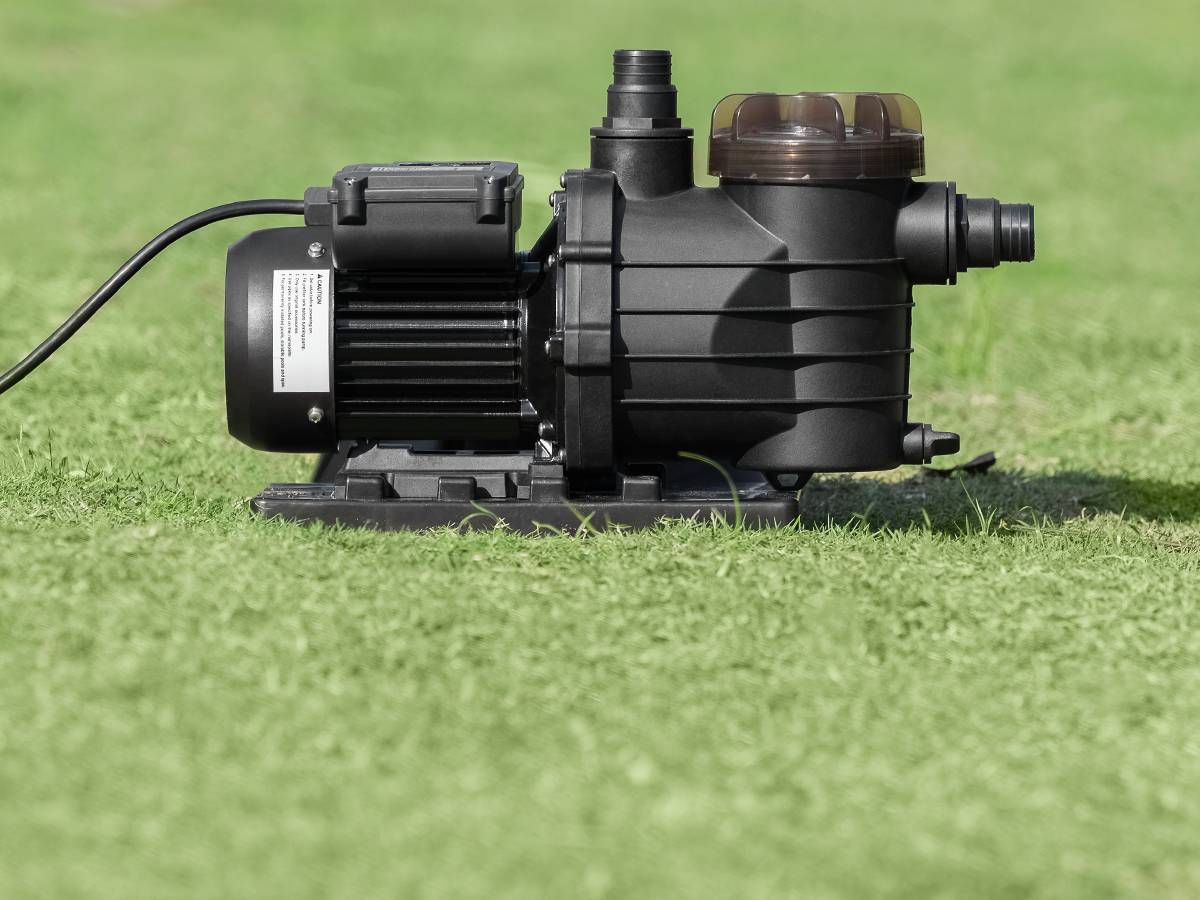

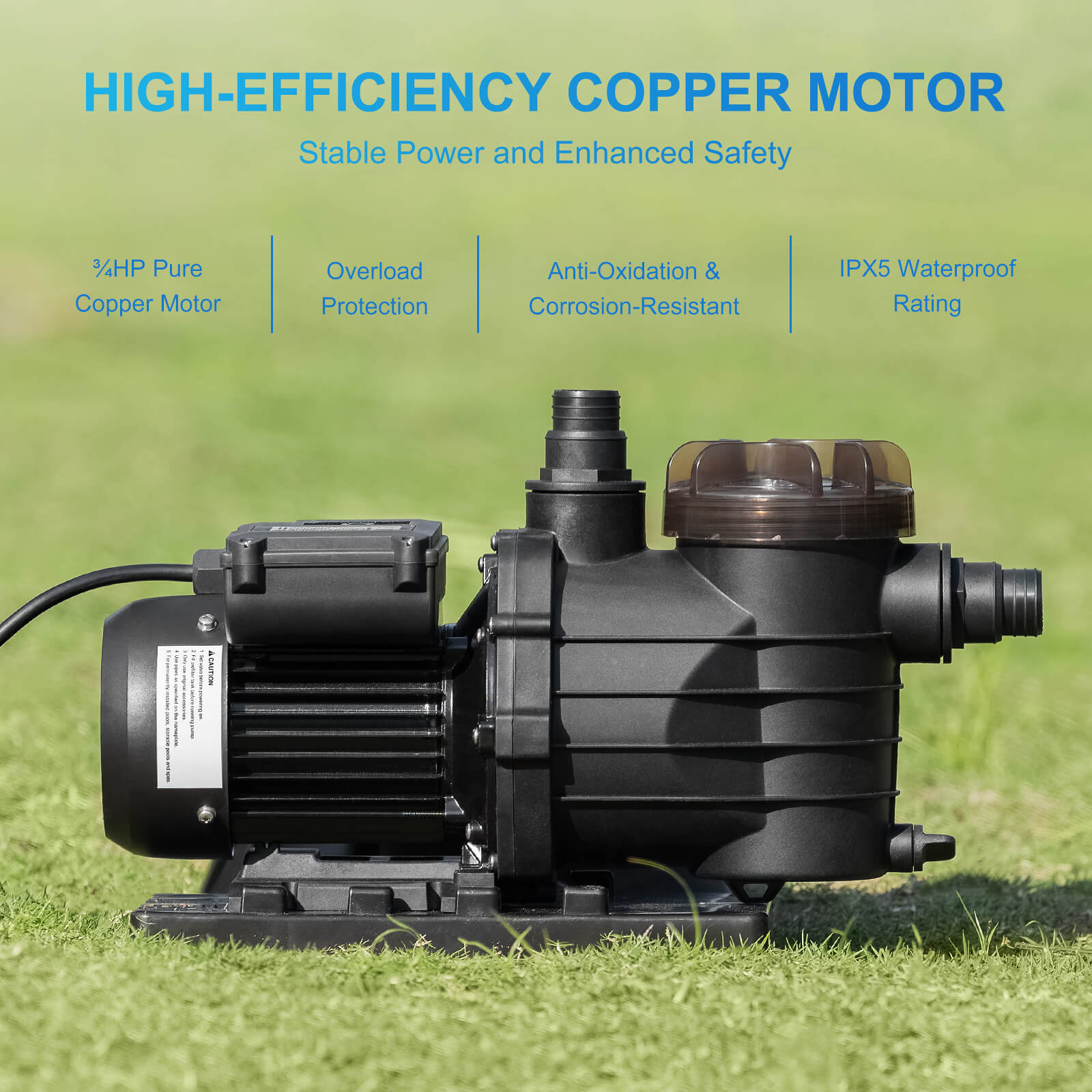

Copper-Wire Motor with Overload Protection

Corrosion-resistant, 20% more efficient, and IPX5 waterproof.

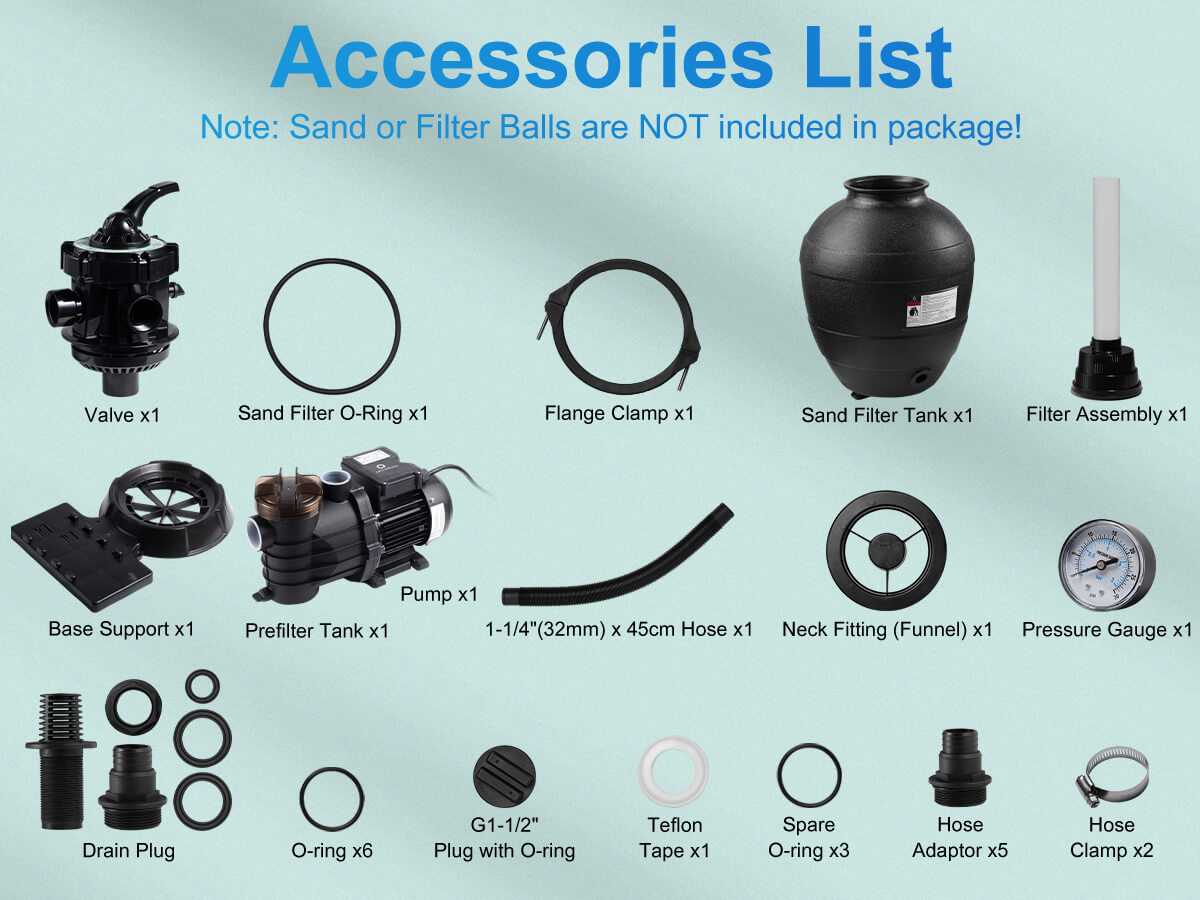

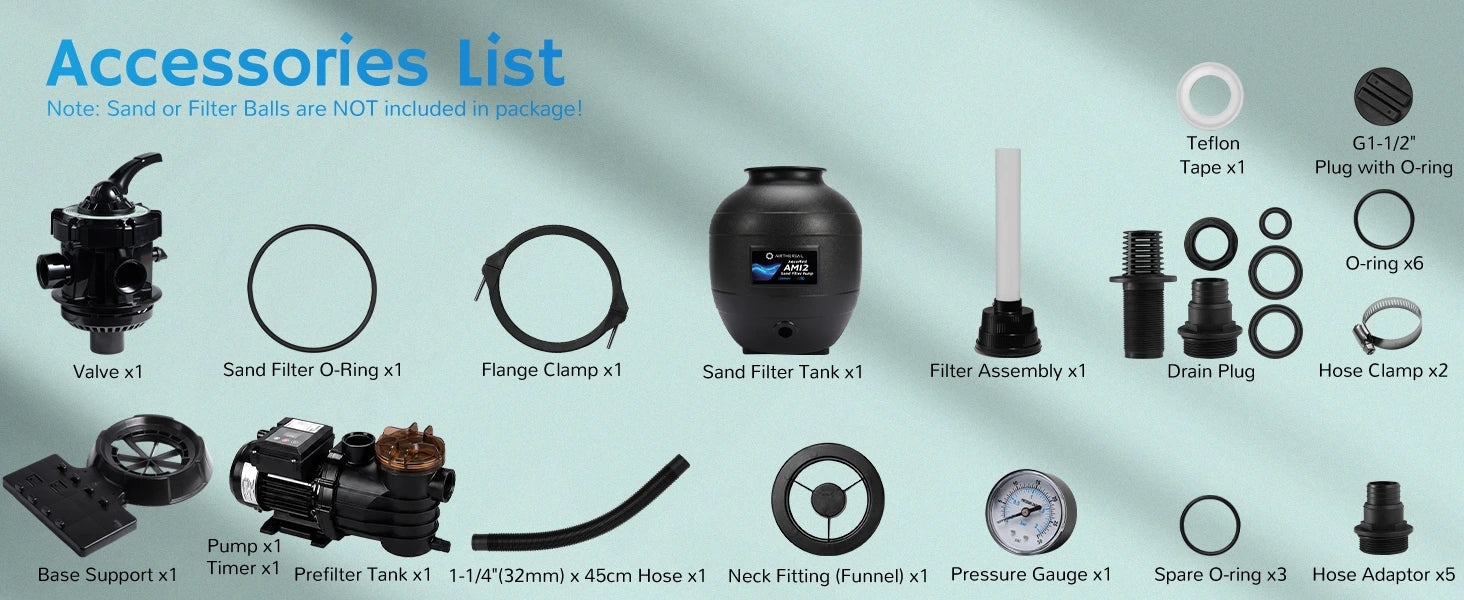

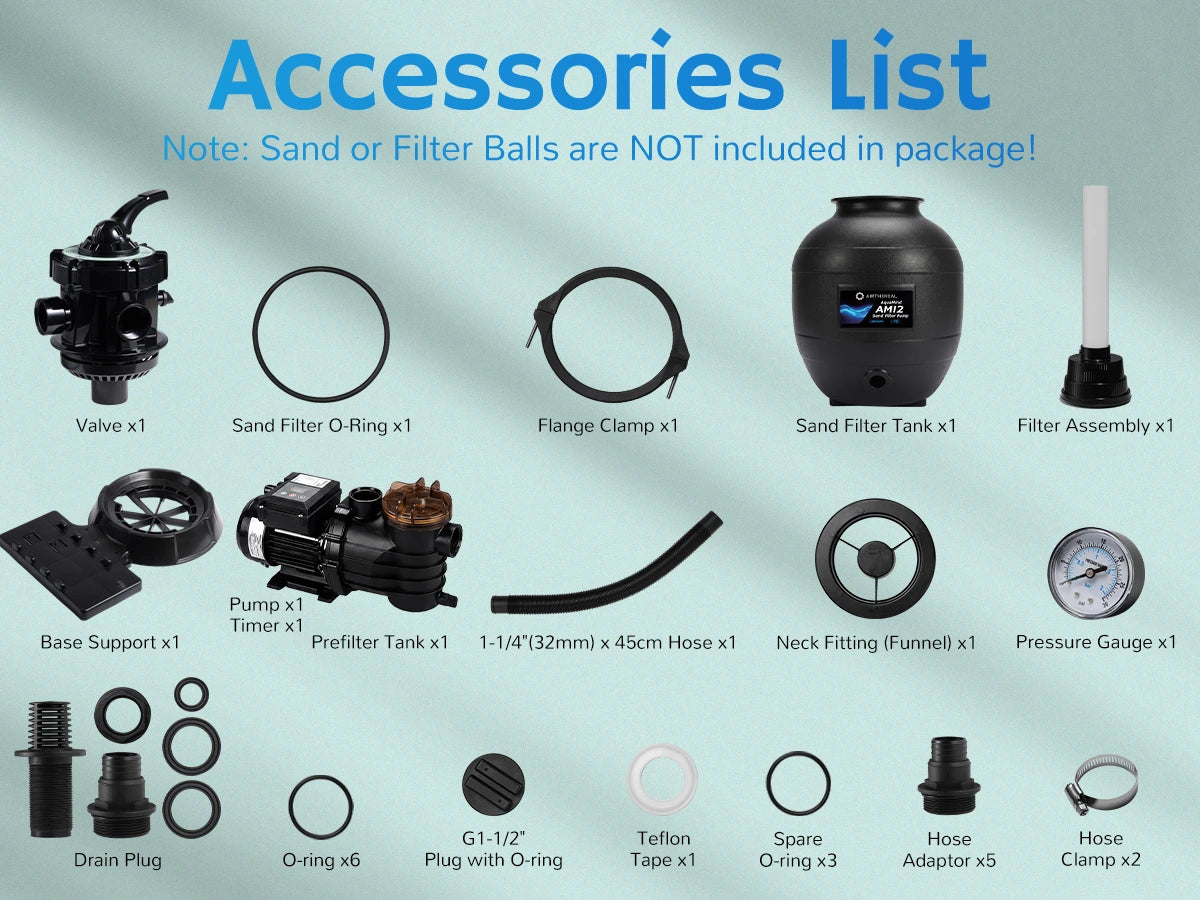

List of sand filter pump accessories including valves, sand filter, hose clamps, and more on a light gray background.

Technical Details

Full specifications.

A black AquaMind sand filter pump for pools, showing the pump unit with attached hoses and gauges on the top. AM12
A black AquaMind sand filter pump for pools, showing the pump unit with attached hoses and gauges on the top. AM13
A black AquaMind sand filter pump for pools, showing the pump unit with attached hoses and gauges on the top. AM16
Power Supply 110-120V/60Hz 110-120V/60Hz 110-120V/60Hz
Sand Tank Size 12 in 13 in 16 in
Horsepower 0.540HP (400W) 0.745HP (550W) 0.745HP (550W)
Max. Water Pressure 14.5 psi 17.4 psi 17.4 psi
Max. Pump Flow Rate 2,642 GPH 3,435 GPH 3,435 GPH
Max. Head 33 ft 40 ft 40 ft
Max. Filter Sand Capacity 28.7 lb 55.0 lb 162.0 lb
Filter Balls Capacity 12.1 lb 13.1 lb 16.2 lb
Effective Filtration Capacity 7,925 Gal 9,245 Gal 10,567 Gal
Output Port Size 1.5 in 1.5 in 1.5 in
Max. Liquid Temperature 41-104°F 41-104°F 41-104°F
Waterproof IPX 5 IPX 5 IPX 5
