What Is a Tankless Water Heater?
A tankless water heater heats up water on demand instead of storing heated water in a storage tank. Due to its short heating time, tankless water heaters are perfect for cooking areas, additional bathrooms, or any place where water needs to be used at any time. Also, because of its rapid heating and small size, our tankless water heaters are 90% smaller than a traditional water heater.
What Is a Tankless Water Heater?
A tankless water heater heats up water on demand instead of storing heated water in a storage tank. Due to its short heating time, tankless water heaters are perfect for cooking areas, additional bathrooms, or any place where water needs to be used at any time. Also, because of its rapid heating and small size, our tankless water heaters are 90% smaller than a traditional water heater.
How are “Traditional” Tank Storage Water Heaters Different?
Tankless Water Heater
Size
Less space to install
Power Supply
8kW-18kW
Performance
Unlimited hot water
Energy Use
Only heats water on demand
Installation
Can be installed as long as the cold and hot water pipe channels are arranged in advance.
Cleaning & Maintenance
Non-scaling, so no special maintenance is required.
Tank Water Heater
Size
Need quite a bit of room to install
Power Supply
1.5kW-3kW
Performance
Only holds a set amount of hot water
Energy Use
Holds heated water all-day
Installation
Needs to be installed on the load-bearing wall.
Cleaning & Maintenance
Must flush tank twice a year to remove sediment and mineral scale.
Endless Hot Water
Compact Size
Saves Money
Safe to Use
Endless, on-demand hot water
Endless, on-demand hot water
Provide endless hot water on demand with no preheating or sudden temperature fluctuations.
Endless, on-demand hot water
Provide endless hot water on demand with no preheating or sudden temperature fluctuations.
Save 50% on water heating costs
The self-modulating temperature technology only uses energy to heat up water while you are using it.
Safe Hot Water Supply
High Temperature Protection
Dry Heating Protection
Electrical Discharge Protection
Corrosion-Proof Parts
Simple Control Operation
Power On/Off
Decrease/Down
Increase/Up
Standby mode
Heating mode
Excessive water flowp
Malfunction Codes
Electricity leakage
Temperature exceed 131°F/55°C
Temperature sensor failure
Dry heating (no water)
Check your unit capacity
Match your location color on the map to the corresponding chart below to determine unit capacity.Airthereal Electric Tankless Water Heater 18kW, set the outlet temp. 108°F:
STEP 1
Determine your average inlet water temperature by finding your location on the map and noting the color.
STEP 2
Determine how many applications your tankless water heater can run simultaneously by matching your color to the table above.
STEP 3
Check that you can meet theinstallation specifications and requirementsfor the model oftankless heater you selected.
Product Requires:
- 1 x 40A Double Pole Circuit Breaker
- 1 x 8AWG Wire

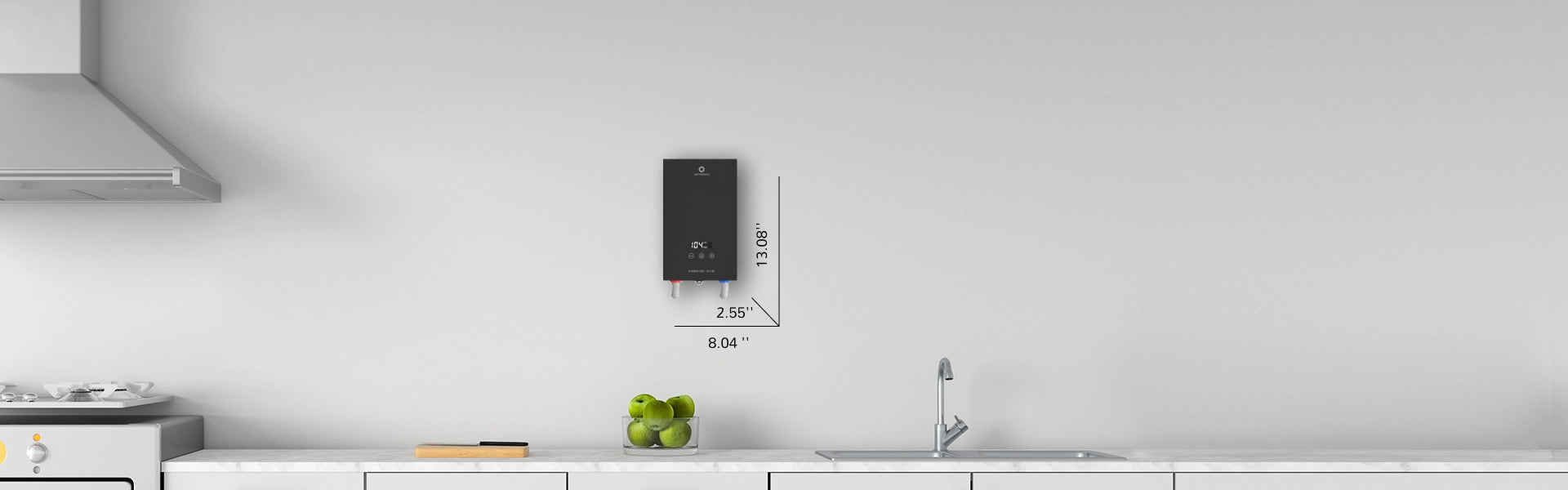

Dimensions
Dimensions
90% smaller than traditional water heater Size(LxWxH): 13.08 x 8.04 x 2.55 Inch
Dimensions
90% smaller than traditional water heater Size(LxWxH): 13.08 x 8.04 x 2.55 Inch
FAQ
Specification
Model |
Voltage |
Power |
Min. Required Circuit Breaker Size |
Max. Amperage |
Recommended Wire Size |
Min. Water Flow |
Safe Operating Pressure |
Water Connections |
Installation |
Temperature Setting |
Dimensions (LxWxH) |
Weight |
Package Includes
No additional parts needed
- Tankless Water Heater x 1
- Mounting Hook x 2
- Wall Plug x 4
- Screw x 4
- User Manual x 1
- Gasket x 1
- Filter x 1
